Apache NiFi is part of the Hortonworks Data Flow (HDF) product and manages data flows. The Raspberry Pi is a small, open source, multi-purpose computer. If you are not familiar with one or more of these products, just follow the links for more information. 🙂
Hardware and Software Specifications
- Hardware: Raspberry Pi 2.
- Operating System: Raspbian version March-2016 (Download).
- Bootstrapping the RasPi: using my prepared Ansible script. Check out the github project Boostrap Raspbian with Ansible and the corresponding article How to Setup the Raspberry Pi 3 Using Ansible for more information.
- Software: HDF 1.2 (Download).
- Download and unzip HDF. I put it into the home directory of the RasPi:
- Install NiFi:
pi@raspberrypi:~/HDF-18.104.22.168/nifi/bin $ sudo ./nifi.sh install
- Start NiFi:
- For details check the official docs:
Impressions and Remarks
- Docs say that after installation the command
service nifi start
should work out of the box, but for me only this works without further modifications:
- After starting, I tried to access the Web Interface, but it didn’t work. I checked the logs, but everything seemed alright. I saw something like the following in the nifi-bootstrap.log
2016-04-02 21:06:29,563 INFO [NiFi Bootstrap Command Listener] org.apache.nifi.bootstrap.RunNiFi Apache NiFi now running and listening for Bootstrap requests on port 47094

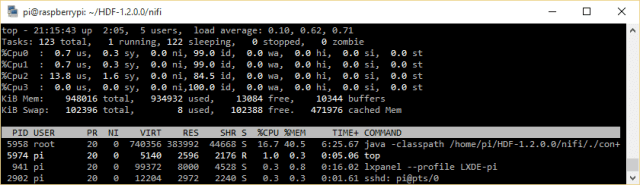

After 6 minutes and 3 seconds, the web interface was available though. As you can see in the screenshot below HDF takes 100% of one core of the RasPi during the start up process:
- After the webserver is up and running, NiFi’s resource usage looks more moderate:

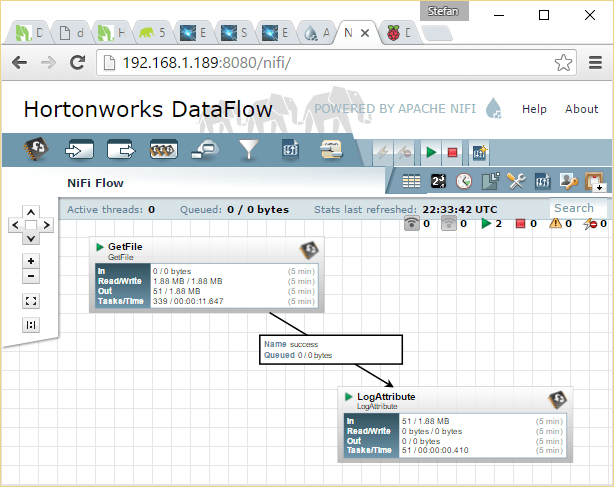

- I followed the “Getting Started” where NiFi is configured to have two processors, one of which reads files from the disk, sends them to the other processor and deletes them. The other processor just receives the files and logs their information to the nifi-app.log. Although the name of the processor “LogAttribute” is quite obvious, the official documentation does not provide a description on what it actually does. I found this amazing blog post on a www.nifi.rocks, where quite a lot of processors are described.
NiFi is as easy to install on a Raspberry Pi as anywhere else and sticks out with all of its features, being complex but not complicated. I did not test a lot of different processors on the RasPi nor did I test this simple setup with large amounts of data, but even in its simplicity the possibilities are endless. Combining the power and easy of use of the RasPi’s GPIOs with NiFi’s power and simplicity to direct and redirect data (flows), practically every child can, e.g., send temperature sensor data into a Hadoop File System and even process and filter it on its way.
